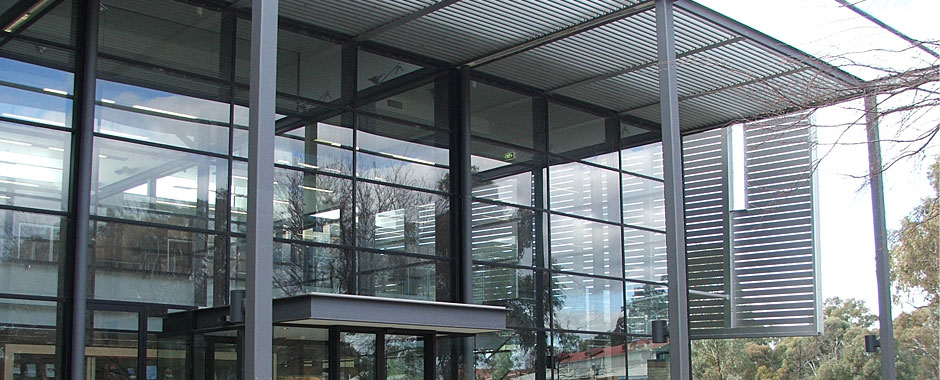

Single Centre Glazed 150mm Framing | Series 620

A strong and versatile frame and glazing pocket designed to accept 24mm insulating glass units.

Single Centre Glazed 150mm Framing | Series 620

Frame and glazing pocket designed to accept 24mm insulating glass units (IGUs) with required 12mm bite, plus another 4mm to cater for glass production and installation tolerances. It’s compatible with a large range of other Elevate™ framing systems, including sliding doors, snap together and interlocking expansion mullions, matching 50mm thick hinged, pivot or sliding door; each designed to accept 24mm thick double glazing and a large variety of industry standard hardware, two fully beaded midrail sizes to choose from (125mm and 200mm deep), concealed overhead transom also designed to accept 24mm IGUs and we can insert awning sashes into the framing – if required. These sashes will also accept 24mm IGUs


Available in a range of configurations to suit your needs


Make your own selection of colour finishes

Select from our popular colours or contact us to
see our complete colour range.

Anotec Natural Pearl

APO Grey

Custom Black




Pearl White



Woodland Grey

Put the finishing touches on with a selection of hardware options

Download Brochure
Maximum Panel Height*
Maximum Panel Width*
Maximum Glass Thickness
≤ 15.50mm
SHGC Range
0.23 – 0.72
Uw Range
4.4 – 6.3
Acoustics Testing Certified
AS2047 Testing Certified
WERS Rating

Frequently Asked Questions

What is the expected turnaround time for these products?

Our general lead time for products is approximately  5 – 6 weeks but this time can fluctuate depending on how busy our factory is. Please contact us to find out what our current lead time is.

Can I see this product in your showroom?

Our showrooms display the majority of the products we sell, allowing you to see, feel and experience them before you go ahead with your order. It also allows you to explore different styles and options in the decision making process.

Can you install this product?

We are a supply only company. This means you will need a builder or carpenter to install the products for you. If you need assistance finding an installer please talk to one of our sales reps who will be able to recommend an installer to you.

Do you make this product in custom sizes?

All our window and door products are custom made to the size that you need. We do not stock any windows and doors. The exception being Velux Skylights. They cannot be custom sized. We will order the size you request from their available options.

Is this product covered with a warranty?

Our window and door products have a 6 year warranty, this has some exclusions including any moving parts which have a 3 year warranty. Check out the full warranty details here

How do I get a quote to have this product in my project?

Fill out a quote request online and we will be in touch to finalise a quote with you. Or call us to talk to one of our experienced sales representatives today.

Add this frame to your quote for a stylish, strong design
