Single Front Glazed Framing | Series 406

Series 406 FrontGLAZE™ framing is designed to complement other AWS framing and doors.

Single Front Glazed Framing | Series 406

Series 406 FrontGLAZE™ framing is designed to complement other AWS framing and doors. This window allows for up to a 600Pa water resistance which is high, there are a large variety of transom and mullion alternatives including many 400 series doors, sub frames and accessories, with true captibve glazing wedge, can be constructed with snap together mullion and expansion mullion with central weather leg for improved waterproofing, two midrail sizes (50mm and 125mm), glazing and beading options and sills and transoms are splayed at 25º to reduce the chance of dust and pollution build-up.


Available in a range of configurations to suit your needs


Make your own selection of colour finishes

Select from our popular colours or contact us to
see our complete colour range.

Anotec Natural Pearl

APO Grey

Custom Black




Pearl White



Woodland Grey

Put the finishing touches on with a selection of hardware options

Maximum Panel Height*
Maximum Panel Width*
Maximum Glass Thickness
≤ 10.38mm
SHGC Range
0.25 – 0.74
Uw Range
4.5 – 6.1
Acoustics Testing Certified
AS2047 Testing Certified
BAL40 Testing Certified
WERS Rating

Frequently Asked Questions

What is the expected turnaround time for these products?

Our general lead time for products is approximately  5 – 6 weeks but this time can fluctuate depending on how busy our factory is. Please contact us to find out what our current lead time is.

Can I see this product in your showroom?

Our showrooms display the majority of the products we sell, allowing you to see, feel and experience them before you go ahead with your order. It also allows you to explore different styles and options in the decision making process.

Can you install this product?

We are a supply only company. This means you will need a builder or carpenter to install the products for you. If you need assistance finding an installer please talk to one of our sales reps who will be able to recommend an installer to you.

Do you make this product in custom sizes?

All our window and door products are custom made to the size that you need. We do not stock any windows and doors. The exception being Velux Skylights. They cannot be custom sized. We will order the size you request from their available options.

Is this product covered with a warranty?

Our window and door products have a 6 year warranty, this has some exclusions including any moving parts which have a 3 year warranty. Check out the full warranty details here

How do I get a quote to have this product in my project?

Fill out a quote request online and we will be in touch to finalise a quote with you. Or call us to talk to one of our experienced sales representatives today.

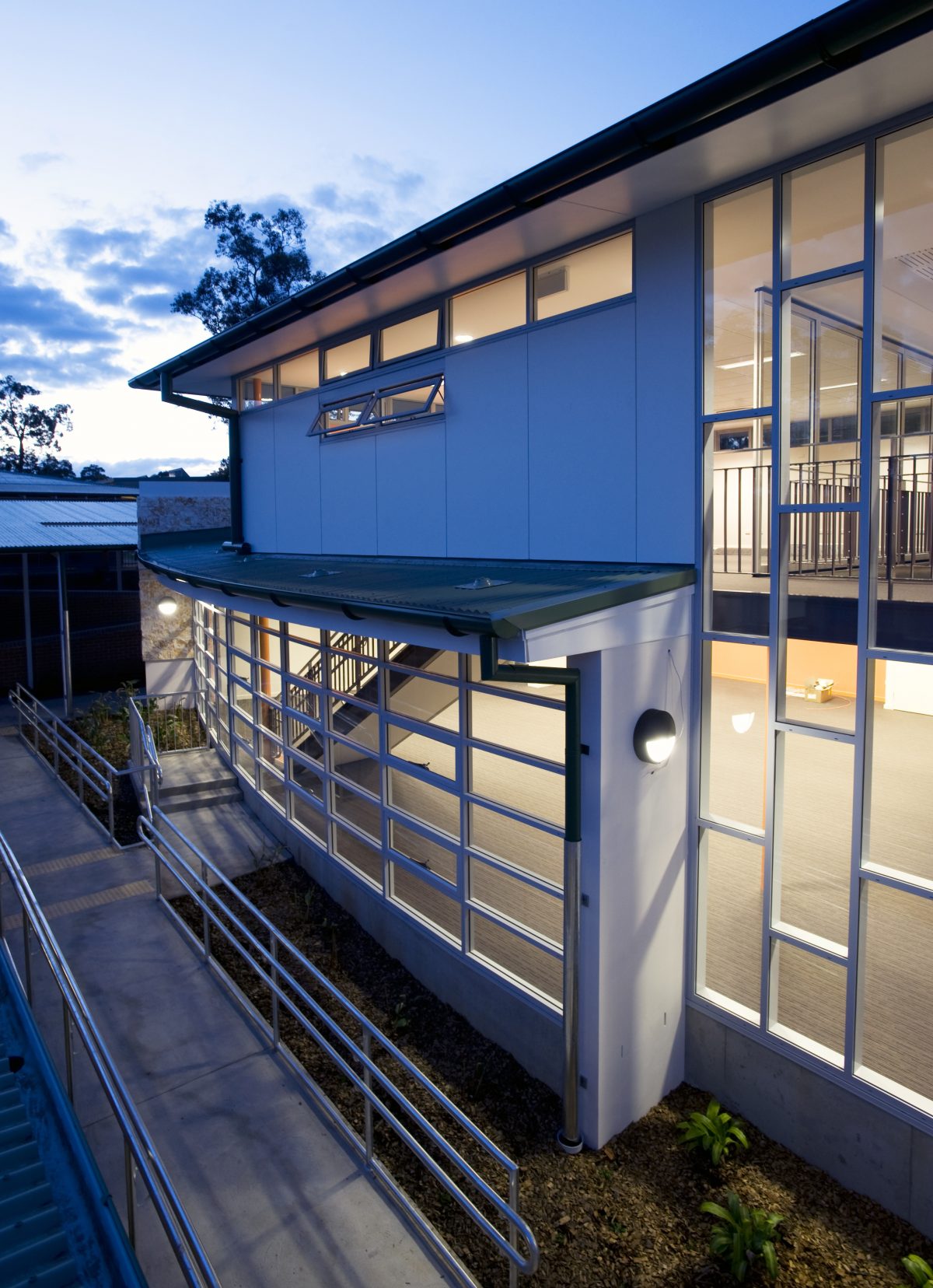

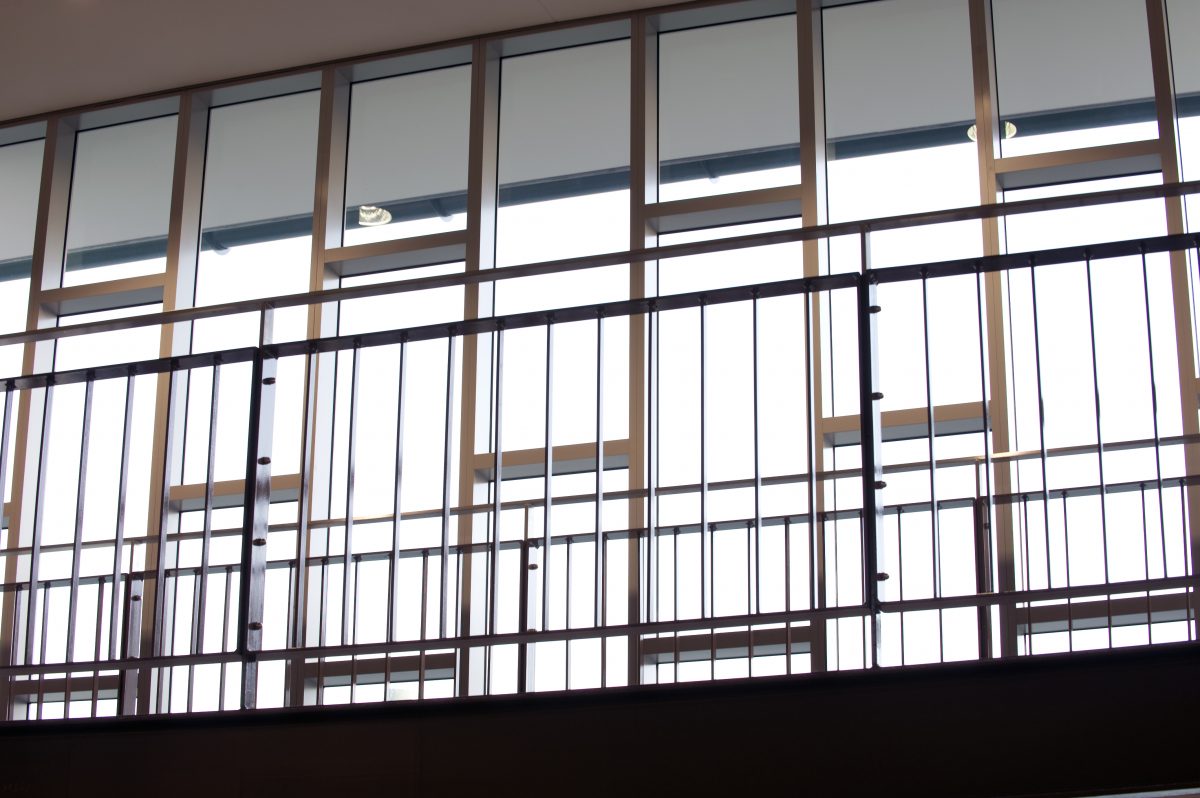

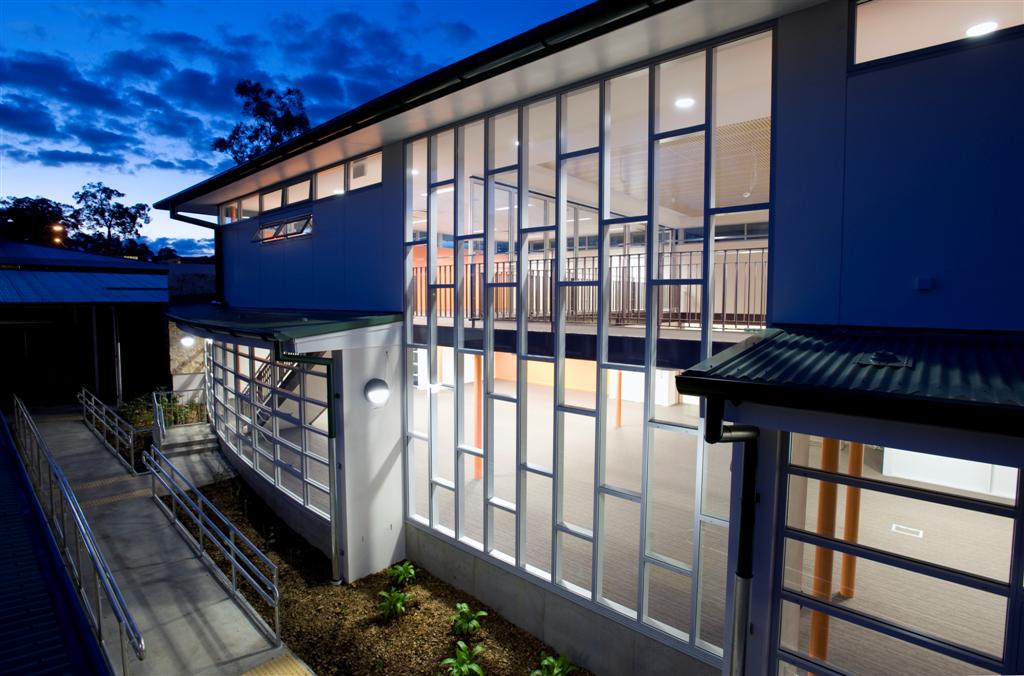

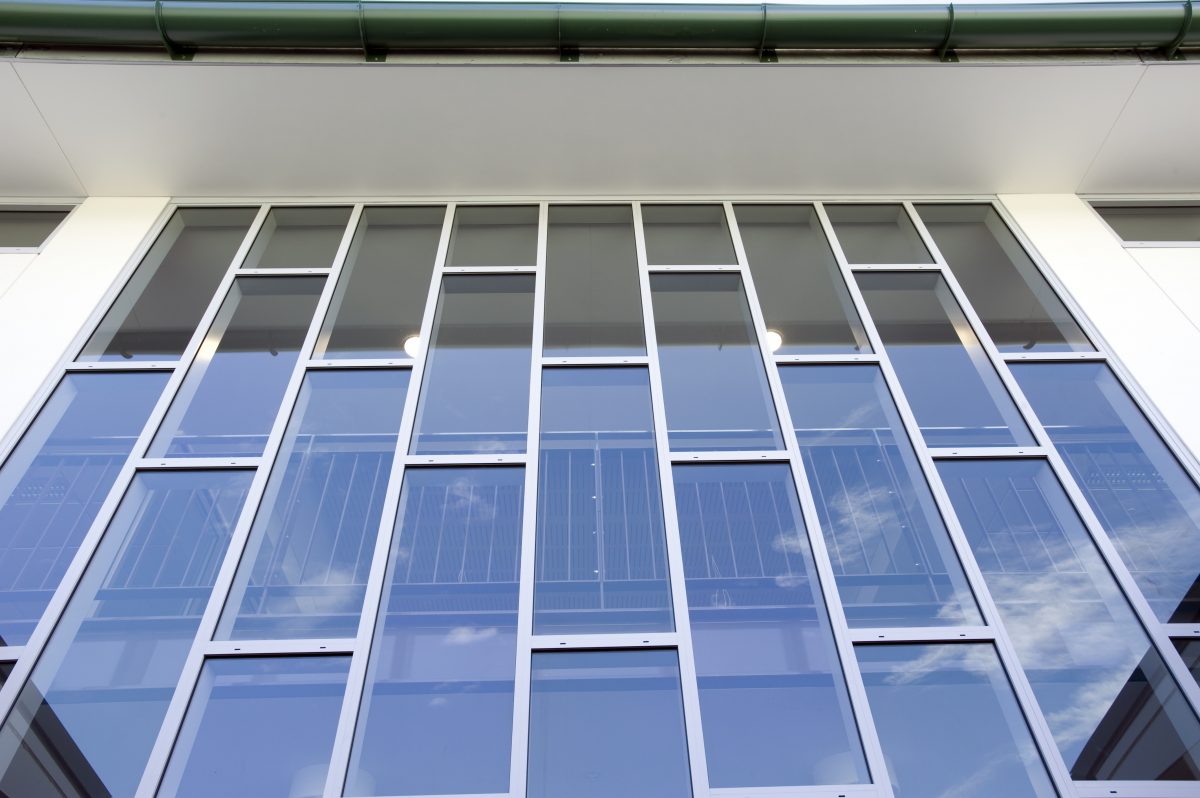

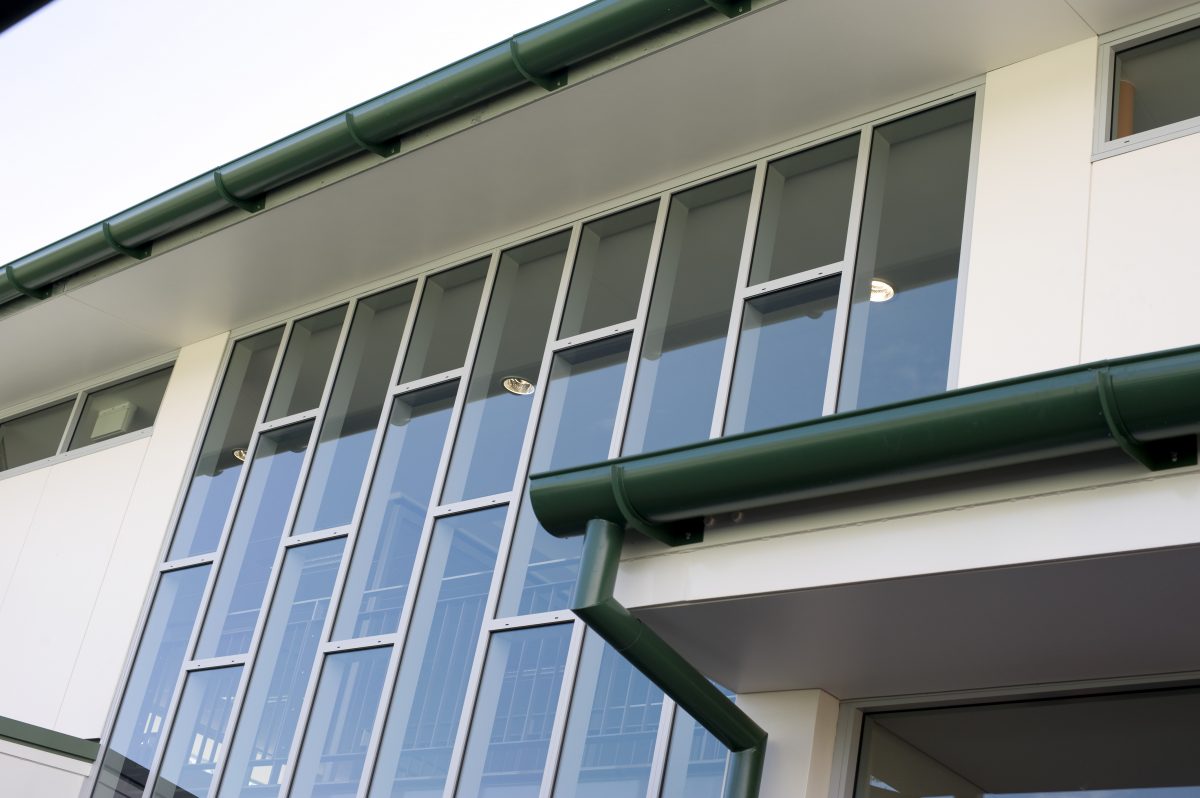

Perfect for commercial properties this framing system is strong and modern
